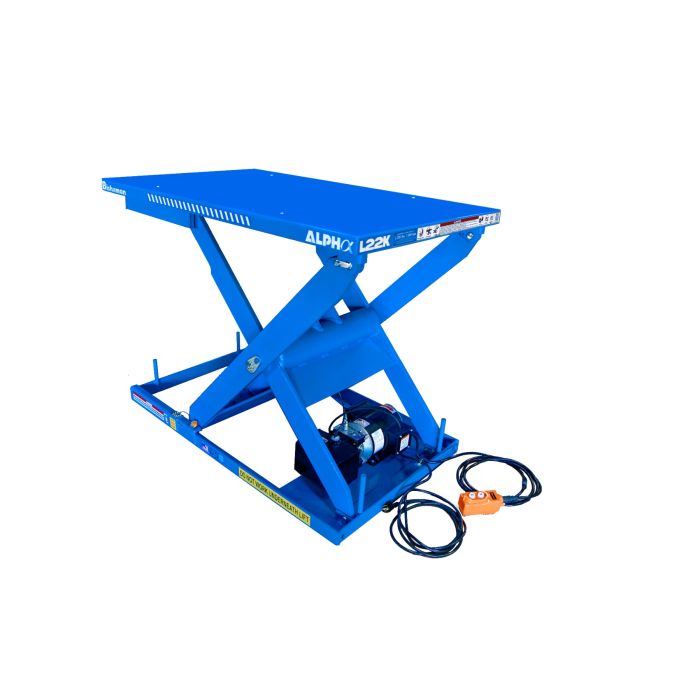

31" x 53" Hand Control Electric-Hydraulic Lift Table, 2,200 lbs - Bishamon Alpha Series, L22K 230-480V (Single & Three-Phase)
The Bishamon Alpha Series L22K Electric-Hydraulic Lift Table features a 31" x 53" steel platform, a 2,200 lbs lifting capacity, and hand-control operation powered by 230–480V single & three phase electricity for ergonomic material handling in industrial environments.
31" x 53" Hand Control Electric-Hydraulic Lift Table, 2,200 lbs - Bishamon Alpha Series, L22K 230-480V Single & Three phase
The Bishamon Alpha Series L22K Electric-Hydraulic Lift Table is a heavy-duty lifting solution engineered for precision, reliability, and ergonomic load handling in demanding industrial environments. The L22K lift table features a 31" x 53" steel platform and supports a 2,200 lbs lifting capacity, making the Alpha Series L22K suitable for pallet positioning, workstation elevation, assembly operations, and production support tasks.
The Electric-Hydraulic Lift Table features a heavy-duty steel frame and reinforced scissor lift structure designed for durability in continuous industrial operation. The 31" x 53" lift table uses a hand-held pendant control system powered by 230V single-phase, 230V three-phase, and 480V three-phase electricity for precise platform raising and lowering during material handling tasks.
The Bishamon L22K lift table supports reliable material positioning and ergonomic load handling in warehouse, manufacturing, and distribution environments.
Key Features:
- The electric-hydraulic lifting system delivers smooth and controlled vertical travel for industrial material handling tasks.
- The 31" x 53" steel platform provides stable support for pallets, containers, and assembly components.
- The 2,200 lbs lifting capacity supports demanding production, packaging, and warehouse operations.
- The hand-held pendant control allows precise platform raising and lowering during material positioning.
- The 230V single-phase, 230V three-phase, and 480V three-phase power supply supports integration into standard industrial electrical environments.
- The reinforced steel frame and scissor mechanism provide strength and durability for continuous-duty applications.
L22K Model Table Specifications:
| Model | Travel | Capacity | Platform Size (In.) | Operation Mode | Height Lowered | Height Raised | Power Supply | Approx. Shipping Weight |
|---|---|---|---|---|---|---|---|---|
| L22K-3153 | 30" | 2,200 lbs | 31" x 53" | Hand & Foot Controlled | 8.5" | 38.5" | 115V - Single-Phase, 230V - Single-Phase & Three-Phase, 480V - Three-Phase |
550 lbs |
| L22K-4053 | 31" | 2,200 lbs | 40" x 53" | Hand & Foot Controlled | 8.5" | 39.5" | 115V - Single-Phase, 230V - Single-Phase & Three-Phase, 480V - Three-Phase |
580 lbs |
| L22K-TT | 30" | 2,200 lbs | 43" Dia. Rotating | Hand & Foot Controlled | 11.5" | 41.5" | 115V - Single-Phase, 230V - Single-Phase & Three-Phase, 480V - Three-Phase |
700 lbs |
| L22K-TT4444 | 30" | 2,200 lbs | 44" x 44" Rotating | Hand & Foot Controlled | 11.5" | 41.5" | 115V - Single-Phase, 230V - Single-Phase & Three-Phase, 480V - Three-Phase |
750 lbs |
| L22K-TT4448 | 30" | 2,200 lbs | 44" x 48" Rotating | Hand & Foot Controlled | 11.5" | 41.5" | 115V - Single-Phase, 230V - Single-Phase & Three-Phase, 480V - Three-Phase |
760 lbs |
| L22K-TT4848 | 30" | 2,200 lbs | 48" x 48" Rotating | Hand & Foot Controlled | 11.5" | 41.5" | 115V - Single-Phase, 230V - Single-Phase & Three-Phase, 480V - Three-Phase |
770 lbs |
Interested in purchasing an option or accessory without installation to a unit? Contact us for pricing.
Important Note:
- Turntable models are indicated with "TT" in the model name.
Options & Accessories:
| Options | Description |
|---|---|
| L22K-ABS | Accordion bellows skirting for L22K |
| L22K-CART | Cart portability with 2 swivel wheels and 2 rigid wheels (adds 7" to lowered and maximum raised height) |
Mr. Shrinkwrap is a leading distributor of protective products, shrink wrap films and installation supplies with a dedicated team available to take your order at any time of day. We have several experienced shrink wrap installation technicians on staff to help and support you on various aspects of any shrink wrap project. If you would like to place an order over the phone or have questions for us, give Mr. Shrinkwrap a call at 800-847-5290.
| SKU | MSW-BIS-L22K-31531-H |
|---|---|
| Weight | 550.000000 |
| Brand | Bishamon |
| Ships From | Ontario California |
| Item Returns | This item can be returned |
